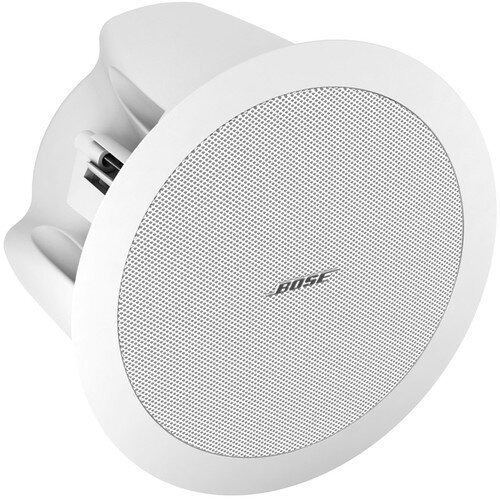

DS16F Bose Free Space Ceiling Speaker White

Bose
Availability:

1 in stock


The Bose? FreeSpace DS 16F is the entry-level member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount, loudspeaker designed for background music and speech reproduction in a wide range of installed applications. The DS 16F features a wide, even 140? conical pattern and frequency range down to 80 Hz.

[popup_anything id=”14925″]
[popup_anything id=”9052″]
call now

35,000

1 in stock

Compare

DS16F Bose Free Space Ceiling Speaker price in Pakistan

https://radiotvcentre.pk/ offers the best DS16F Bose Free Space Ceiling Speaker price in Pakistan with a quick delivery service all over Pakistan. So why wait? Just place your order now before it gets out of stock



Product Overview

The Bose? FreeSpace DS 16F is the entry-level member of the DS loudspeaker family. It is a high-performance, full-range, flush-mount, loudspeaker designed for background music and speech reproduction in a wide range of installed applications. The DS 16F features a wide, even 140? conical pattern and frequency range down to 80 Hz.



Key Features

? Full-range loudspeaker with a single 2.25″ (57 mm) driver in a ported enclosure to deliver a 140? conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendantmount applications
? Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille.
? Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality.
? Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass? module for extended bass response
? Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille.

ORDER GUIDELINE :

When you order from radiotvcentre.pk, you will receive a confirmation email. You can choose your preferred shipping method on the Order Information page during the checkout process. The total time it takes to receive your order is shown below:

The total delivery time is calculated from the time your order is placed until the time it is delivered to you. Total delivery time is broken down into processing time and shipping time. Processing time: The time it takes to prepare your item(s) to ship from our warehouse.

This includes preparing your items, performing quality checks, and packing for shipment. Shipping time: The time for your item(s) to travel from our warehouse to your destination. Shipping from your local warehouse is significantly faster. Some charges may apply. In addition, the transit time depends on where you’re located and where your package comes from. If you want to know more information, please contact customer service. We will settle your problem as soon as possible. Enjoy shopping at Radio TV Centre You Can also visit our Facebook Page !

brands

color

White

DS16F Bose Free Space Ceiling Speaker price in Pakistan

Technical Specifications

System Performance

Frequency Response (+/-3 dB)1: 95 Hz – 17 kHz
Frequency Range (-10 dB)1: 80 Hz – 19 kHz
Nominal Dispersion: 140? conical

Recommended High-Pass Filter: 80 Hz high-pass filter

Loudspeaker EQ: Recommended
Long-Term Power Handling2: 16 W (64 W peak)
Sensitivity (SPL / 1 W @ 1 m)3: 84 dB SPL
Maximum SPL @ 1 m4: 96 dB SPL (102 dB SPL peak)
Nominal Impedance: 8 ? (transformer bypassed)
Transformer Taps (70/100 V): 70 V: 1 W, 2 W, 4 W, 8 W, 16 W
100 V: 2 W, 4 W, 8 W, 16 W

Transducers

Driver Compliment: 2.25″ (57 mm) full-range driver

Physical

Enclosure: PC/ABS
Grille: Powder-coated steel grille
Environmental: Indoor use only
Connectors: Three-terminal barrier strip. Optional accessory available for use when ceramic connector and thermal fuse are required. Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)
Suspension / Mounting: Three integrated quick-install mounting arms. Three mounting points at the rear of the enclosure for use with optional accessory pendant mount
kit. Safety cable attachment: .35″ (8.9 mm) diameter hole on junction box.
Dimensions: Outer flange diameter: 9.4″ (239 mm)
Depth: 6.9″ (176 mm)
Ceiling hole diameter: 8.0″ (203 mm)
Ceiling Thickness (Maximum): 1.5″ (38 mm)
Net Weight: 4.4 lb (1.9 kg)
Shipping Weight: 6.0 lb (2.7 kg)
