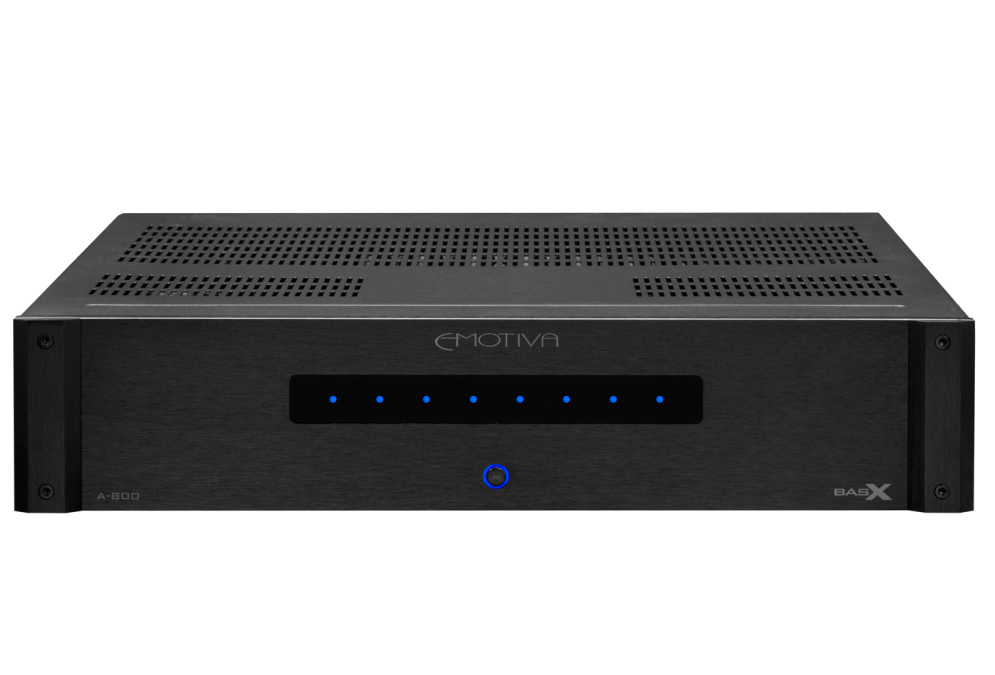

BasX A800 Emotiva Multi-Zone 8 Channel Power Amplifier

Emotiva
Availability:

2 in stock


  • The BasX A-800 is an eight-channel power amplifier, specifically designed for use in multi-zone and whole-home applications.
  • Each individual amplifier channel features a carefully designed high current, short signal path, Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry.
    [popup_anything id=”14925″]
    [popup_anything id=”9052″]
    call now

250,000

2 in stock

Compare

BasX A800 Emotiva Multi-Zone Power Amplifier Black

https://radiotvcentre.pk/ offers the best BasX A800 Emotiva Amplifier at the best price in Pakistan with quick delivery service to all over Pakistan. So why wait? Just place your order now before it gets out of stock.

The BasX A-800 power amps provide eight separate channels of amplification, which can be used as eight separate channels, or as four stereo pairs, or as four bridged channels, each capable of delivering higher power. The BasX A800 amplifier is perfect for running multiple pairs of speakers in different locations or rooms and can provide plenty of great sounding power to run up to four separate pairs of in-ceiling or in-wall speakers in up to four different zones.

Power Output: 50 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.03%; into 8 Ohms. 80 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 4 Ohms., Frequency Response: Individual channel mode: 20 Hz to 80 kHz (+ / – 1.8 dB). Bridged mode: 20 Hz to 80 kHz (+ / – 3 dB)., THD+N: < 0.05% (A-weighted); at rated power; 1 kHz; 8 Ohms, S/N Ratio (8 ohm): > 110 dB (A-weighted); ref rated power.?> 95 dB (A-weighted); ref 1 watt.

Below are the more details of this product.

ORDER GUIDELINE :

When you order from radiotvcentre.pk, you will receive a confirmation email. You can choose your preferred shipping method on the Order Information page during the checkout process. The total time it takes to receive your order is shown below:

The total delivery time is calculated from the time your order is placed until the time it is delivered to you. Total delivery time is broken down into processing time and shipping time. Processing time: The time it takes to prepare your item(s) to ship from our warehouse.

This includes preparing your items, performing quality checks, and packing for shipment. Shipping time: The time for your item(s) to travel from our warehouse to your destination. Shipping from your local warehouse is significantly faster. Some charges may apply. In addition, the transit time depends on where you’re located and where your package comes from. If you want to know more information, please contact customer service. We will settle your problem as soon as possible. Enjoy shopping at Radio TV Centre? You Can also visit our Facebook Page!

brands

color

Black

Appliances Type

Power Amplifier

Circuit Topology

  • The BasX A-800 is an eight channel power amplifier, specifically designed for use in multi-zone and whole home applications.
  • Each individual amplifier channel features a carefully designed high current, short signal path, Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry.
  • The eight amplifier channels in the A-800 are arranged to provide the absolute maximum in terms of flexibility: each channel may be used separately, or as part of a stereo pair; each stereo pair may be supplied with its own input signal, or receive its signal from a common stereo input bus; and each pair of channels may optionally be bridged into a single channel with higher power (for a total of four bridged high-powered channels).

Audio Specifications

  • Power Output (two channels driven):
    50 watts RMS per channel; 20 Hz ? 20 kHz; THD < 0.03%; into 8 Ohms.
    80 watts RMS per channel; 20 Hz ? 20 kHz; THD < 0.1%; into 4 Ohms.
  • Power Output (8 channels; all channels driven):
    30 watts RMS per channel; 1 kHz; THD < 0.03%; into 8 Ohms.
    50 watts RMS per channel; 1 kHz; THD < 0.1%; into 4 Ohms.
  • Power Output; BRIDGED MODE (4 channels; all channels driven):
    100 watts RMS per channel; 20 Hz ? 20 kHz; THD < 0.03%; into 8 Ohms.
  • Broad Band Frequency Response
    Individual channel mode: 20 Hz to 80 kHz (+ / – 1.8 dB).
    Bridged mode: 20 Hz to 80 kHz (+ / – 3 dB).
  • THD + noise: < 0.05% (A-weighted); ref rated power; 1 kHz; 8 Ohms.
  • Signal to Noise Ratio (8 Ohm load):
    > 110 dB; ref rated power; (A-weighted).
    > 95 dB; ref 1 watt; (A-weighted).
  • Minimum Recommended Load Impedance (per channel)
    Individual channel mode: 4 Ohms.
    Bridged mode: 8 Ohms.
  • Damping Factor (8 Ohm load): > 500.
  • Input Sensitivity (for rated power; 8 Ohm load): 700 mV (0.7V).
  • Gain
    Individual channel mode: 29 dB.
    Bridged mode: 35 dB.
  • Input Impedance: 27 kOhms.

Input And Output Connections

  • Input Connections:
    Unbalanced (RCA); one each per channel.
    Unbalanced (RCA); one pair for Bus Input.
  • Speaker Output Connections: Audiophile grade 5-way binding posts.
  • Trigger:
    BasX A-800 may be configured to be turned on manually, or by a trigger signal from a pre amp or processor, or to turn on automatically when it senses an audio signal on any of its inputs.
    Manual Trigger Input: 5 ? 12 V (AC or DC); <10 mA input current required.
    Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

  • 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators

  • Standby: push button (halo ring changes color to indicate Standby or On).
  • Status LEDs: one per channel; blue.
    Status LEDs change to red to indicate a fault condition.

Rear Panel Controls

  • AC Power Switch; rocker switch (switches AC main power).
  • Power Mode; slide switch; selects Always On, Trigger, or Auto-On Mode.
  • Bus Switch; slide switch; (4) 1 per Zone;
    selects either the Bus or individual input for the Zone.
  • Bridge Switch; selects either individual channel or bridged amplifier operation.
  • Status LEDs switch; disables front panel Status LEDs.

Protection

  • The BasX A-800 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
