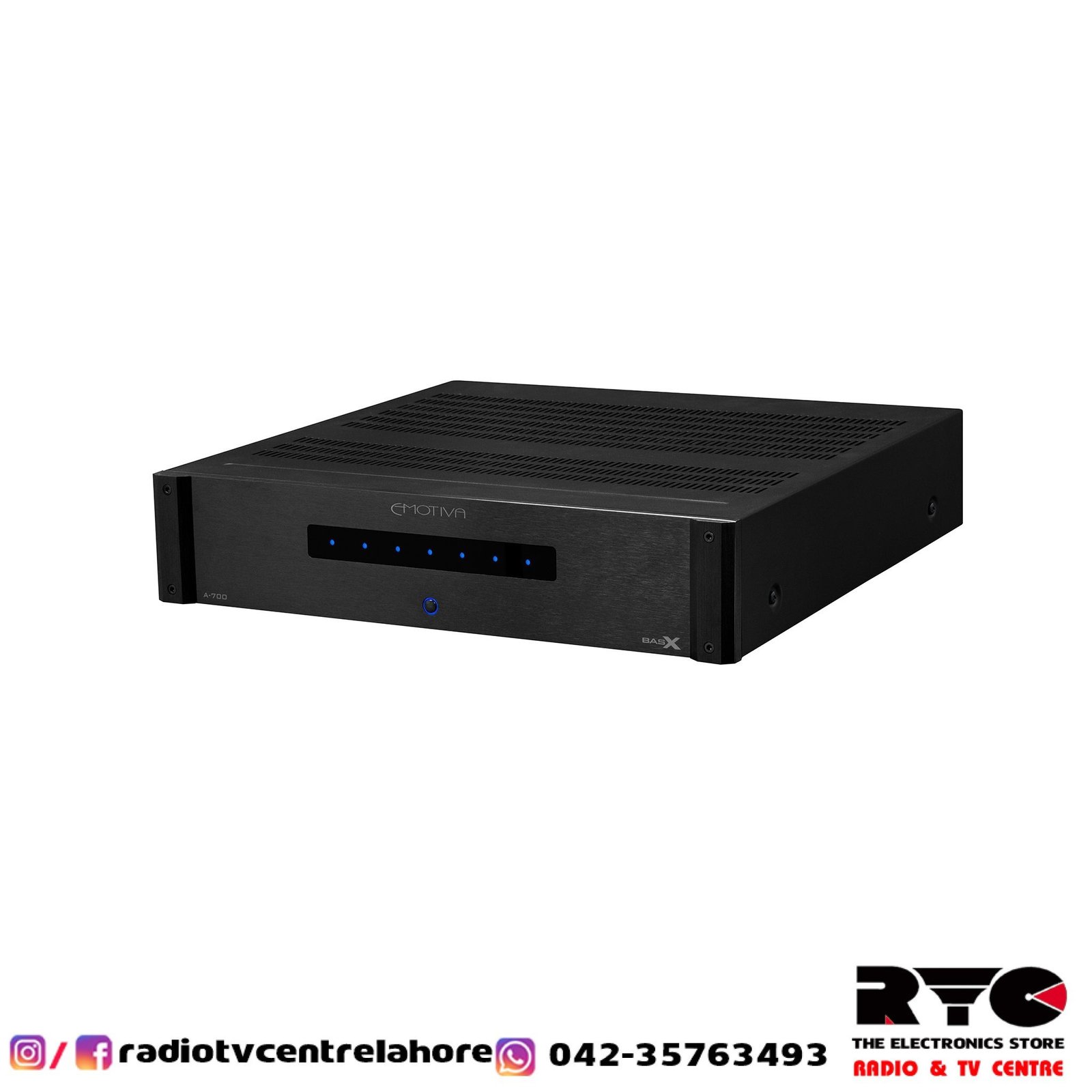

BasX-A700 Emotiva 7-Channel Power Amplifier
,

BasX-A700 Emotiva 7-Channel Power Amplifier

Emotiva
Availability:

Out of stock
  • Plenty of clean power – 110 watts RMS per Channel into 8 ohms; two channels Driven, 20 Hz to 20 kHz, < 0.1% THD (80 watts RMS per Channel, all channels Driven).
  • Great sounding class a/B output stage – ensures smooth, detailed sound and incredibly natural imaging – without a trace of harshness or strain.
  • Top-quality parts and construction throughout – promise years of reliable service.


call now

₨190,000

Out of stock

BasX-A700 Emotiva 7-Channel Power Amplifier

https://radiotvcentre.pk/ offers the best BasX-A700 Emotiva 7-Channel Power Amplifier?at the best price in Pakistan with quick delivery service to all over Pakistan. So why wait? Just place your order now before it gets out of stock.

The BasX A-700 is a seven-channel power amps. Combine the BasX A-700 with a surround sound pre/pro as the heart of a great home theater system, or use it to upgrade the amplifier section of your AVR, or use the BasX A-700 to run the surround speakers in a big home theater system; you won?t be disappointed.

A-700

Power Output (two channels driven): 110 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms 210 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms, THD+N: < 0.02% (A-weighted); at rated power; 1 kHz; 8 Ohms, Broad Band Frequency Response: 5 Hz to 80 kHz (+ / – 1.8 dB), S/N Ratio (8 ohm):> 120 dB (A-weighted); ref rated power.?> 100 dB (A-weighted); ref 1 watt.



The great-sounding Class A/B output stage, Wideband with low noise design, Heavy-duty linear power supply, Top quality parts and construction, Double-sided FR4 circuit boards with plated-through holes, Heavy steel 2RU chassis with milled aluminum faceplate, Heavy duty insulated five-way speaker binding posts, Audiophile-grade fault protection, Three-year warranty. Dimensions: 4? (H) x 17? (W) x 15.5? (D). Unboxed weight: 29.4 lbs.

A-700

Below are the more details of this product.

ORDER GUIDELINE :

When you order from radiotvcentre.pk, you will receive a confirmation email. You can choose your preferred shipping method on the Order Information page during the checkout process. The total time it takes to receive your order is shown below:

The total delivery time is calculated from the time your order is placed until the time it is delivered to you. Total delivery time is broken down into processing time and shipping time. Processing time: The time it takes to prepare your item(s) to ship from our warehouse.

This includes preparing your items, performing quality checks, and packing for shipment. Shipping time: The time for your item(s) to travel from our warehouse to your destination. Shipping from your local warehouse is significantly faster. Some charges may apply. In addition, the transit time depends on where you’re located and where your package comes from. If you want to know more information, please contact customer service. We will settle your problem as soon as possible. Enjoy shopping at Radio TV Centre? You Can also visit our Facebook Page!

SKU: 1.10.015.0001 Categories: , Tags: , , , ,
brands

color

Black
Appliances Type

Power Amplifier

Audio Specifications

  • Power Output (two channels driven):
    110 watts RMS per channel; 20 Hz ? 20 kHz; THD < 0.1%; into 8 Ohms.
    210 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
  • Power Output (all channels driven):
    80 watts RMS per channel; 20 Hz ? 20 kHz; THD < 0.1%; into 8 Ohms.
  • Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / ? 0.07 dB)
  • Broad Band Frequency Response: 5 Hz to 80 kHz +0/-1.8 dB
  • THD + noise: < 0.02% (A-weighted); ref rated power
  • Signal to Noise Ratio (8 Ohm load):
    > 120 dB; ref rated power; (A-weighted).
    > 100 dB; ref 1 watt; (A-weighted).
  • Minimum Recommended Load Impedance (per channel): 4 Ohms
    (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
  • Damping Factor (8 Ohm load): > 500.
  • Input Sensitivity (for rated power; 8 Ohm load): 1.2 V.
  • Gain: 29 dB.
  • Input Impedance: 27 kOhms.

Input And Output Connections

  • Input Connections: Unbalanced (RCA); one each per channel.
  • Speaker Output Connections: Audiophile grade 5-way binding posts.
  • Trigger:
    Trigger Input: 5 ? 12 V (AC or DC); <10 mA input current required.
    Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

  • 115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators

  • Standby: push button (halo ring changes color to indicate Standby or On).
  • Status LEDs: one per channel; blue.
    Status LEDs change to red to indicate a fault condition.

Rear Panel Controls

  • AC Power switch: rocker switch (switches AC main power).
  • Status LEDs switch: disables front panel Status LEDs.
